Name: China High Quality Solar Power Generator Suppliers - Cheap Solar Power Generator Wholesale - Jingxian Battery
Brand: JXBT
SKU: 200799396

Shenzhen Jingxian Battery Technology Co., Ltd. is one of the leading manufacturers and suppliers of solar power generator in China. If you're going to buy discount solar power generator made in China, welcome to get quotation and free sample from our factory. Quality products and low price are available.

A Solar Power Generator is a device that uses solar energy to generate electricity, which can be converted into electricity and supplied to homes and businesses. It has the characteristics of no noise, environmental protection, safety, and reliability, and is widely used in varieties of scenarios.

Specification

Model		152P/W	202P/W	302P/W
Capacity	Rated power	1500W	2000W	3000W
	Peak power(20ms)	4500VA	6000VA	9000VA
Input	Standard battery voltage	24VDC
	AC input voltage range	85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) / 170VAC~275VAC (220VAC)/ 180VAC~285VAC (230VAC) / 190VAC~295VAC (240VAC)
	AC input frequency range	45Hz~55Hz(50Hz);55Hz~65Hz(60Hz)
Output	Conversion efficiency	≥85%(Battery mode); >99%(AC mode)
	AC Output voltage	110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%(AC mode)
	AC Output frequency	50/60Hz±1%(Battery mode); Tracking Automatically(AC mode)
	AC Output waveform	Pure Sine Wave
	THD	≤3%(Linear load)
	DC Output voltage	4DC 12V; 4USB(5V)
AC charger	AC charging current	0~30A(Depends on model)
	AC charging method	Three-stage(constant current, constant voltage, floating charge)
solar charger (Optional)	Charging mode	PWM/MPPT
	Max PV input voltage (At the lowest temperature)	PWM: 50V; MPPT: 150V
	PV input voltage range	PWM:30V~44V; MPPT: 30V~120V
	Charge & discharge current	60A
	Max PV input power	1680W
Inbuilt battery	Capacity	2*200AH
	Battery size(L&W&H)/pcs	522240218(244)
Other	Transfer time	≤4ms
	Protection	with over-voltage, low-voltage, overload, short circuit, high-temperature protections
	Display	LCD & LED
	Cooling way	Cooling fan in intelligent control
	Communication(Optional)	RS485/APP(WIFI monitoring or GPRS monitoring)
Working mode (selectable)	d1	AC priority mode
	d2	ECO mode
	d3	Solar priority mode
Work environment	Operating temperature	-10℃~40℃
	Storage temperature	-15℃~60℃
	Elevation	2000m(More than derating)
	Humidity	0%~95% ,No condensation
Physical	Dimension L x W x H(mm)	560350928
	Net weight(kg)(without battery)	37	39	43
Packing	Dimension L x W x H(mm)	6384271063
	Gross weight(kg)(without battery)	47	49	53
	Quantity/CTN	1pcs per wooden case

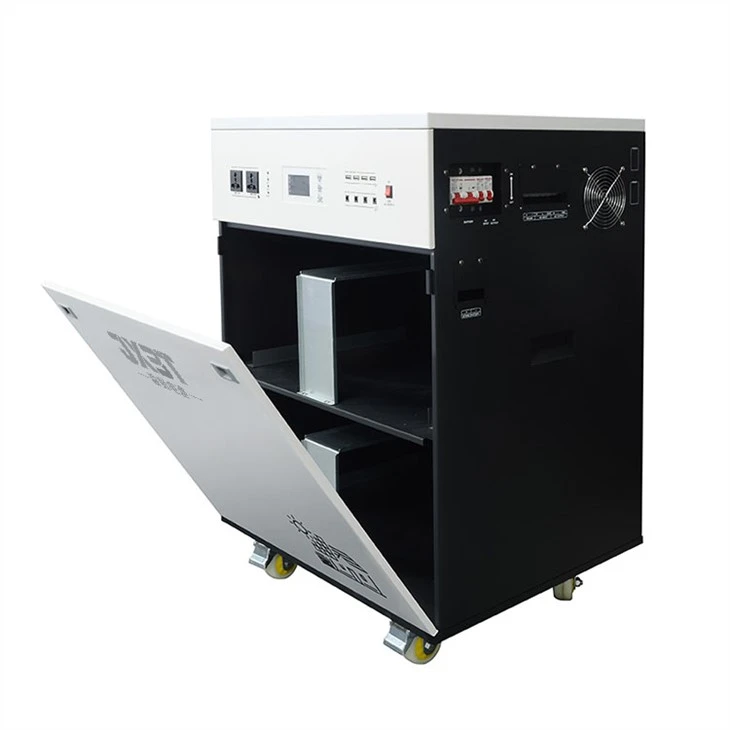

Solar Portable Power Generator

Applications

1. Outdoor activity places: such as camping, wilderness exploration, outing, and other occasions, the use of solar power can provide power support, making activities more convenient and comfortable.

2. Non-public power supply area: In the area without public power grid, it can provide stable power support for local residents.

3. Emergency power supply: In the case of natural disasters or other emergencies, it can provide power support for the affected population.

4. Commercial and industrial fields: It can be used for power supply in commercial, industrial, and other fields, such as outdoor displays, LED displays, and other fields.

Solar Power Generator is a direct current generator, usually does not directly output 220V/110V AC, and needs to be converted into AC output through an inverter or other equipment. However, some Solar Power generators are also equipped with AC output interfaces, which can directly output 220V/110V AC.

JXBTS Certifications
