Battery Storage for Solar and Wind

Battery Storage for Solar and Wind

Battery Storage for Solar and Wind is a key component in any renewable energy system. It is designed to store excess energy produced by solar or wind power generators for later use, ensuring a constant and reliable source of power even when the sun isn't shining, or the wind isn't blowing.
Send Inquiry
Description

Shenzhen Jingxian Battery Technology Co., Ltd. is one of the leading manufacturers and suppliers of battery storage for solar and wind in China. If you're going to buy discount battery storage for solar and wind made in China, welcome to get quotation and free sample from our factory. Quality products and low price are available.



It can be used in residential homes, commercial buildings, and industrial factories. Anywhere where there is a requirement for a stable and sustainable source of energy storage.

Working Principle
Battery Storage for Solar and Wind primarily works by storing excess energy generated by a solar or wind generator for later use. When the sun isn't shining or the wind isn't blowing, the stored energy can be used to power homes and businesses, thereby providing a consistent and sustainable energy source. The Battery Storage operates on a charged and discharged cycle that allows the battery's stored energy to be used when needed. The traditional way of storing energy is no longer just an option, with the Battery Storage for Solar and Wind being a vital component in any renewable energy system.

Details for Battery Storage For Solar And Wind

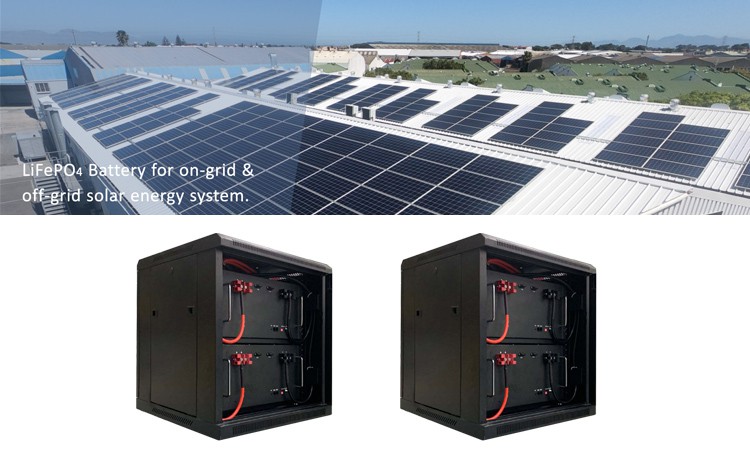

Lifepo4 Battery Module

JXBT Battery System

The higher the battery's capacity, the more solar energy is stored. When a solar battery is installed as part of an on-grid solar panel system, it can store excess solar electricity instead of sending it back to the grid. If solar panels are producing more electricity than is needed, the excess energy goes towards charging the battery.

Our 48V battery system supports solar energy storage for both commercial and industrial purposes. The system is built from the integration of a Basic Storage Battery in parallel connection with smart BMS (Battery Management System)

Features

※ Parallel connection function built-in for large-capacity applications

※ Optional capacity in the cabinet with range 200~600Ah.

※ Equipped communication port of RS485/RS232

※ Standard BMS solution for the protection of charging, discharging, over current, etc.

※ Optional battery module from 48V 10Ah, 48V 20Ah, 48V 30Ah, 48V 50Ah, 48V 70Ah, 48V 100Ah

※ OEM/ODM acceptable for the special requirement on the different voltage, capacities, dimensions, etc.

Model

ESS48200

ESS48400

ESS48600

General Characteristics

Nominal Voltage

51.2V

51.2V

51.2V

Nominal Capacity @0.2C

200Ah

400Ah

600Ah

Nominal Energy

10.24kWh

20.48kWh

30.72kWh

Dimensions (WxDxH)

600x600x850mm

600x600x1400mm

600x600x1800mm

Approx. Weight

30.3KG

49.5KG

51.8KG

Electrical Characteristics

Operating Voltage Range

42V~54V

44.8V~57.6V

42V~53.2V

Max. Charging Current

100A

200A

300A

Max. Discharging Current

100A

200A

300A

Discharging Cut-off Voltage

44.8V

44.8V

44.8V

Faraday Charging Efficiency

≧98%

Energy Charging Efficiency

≧92%

Internal Resistance

80mΩ

55mΩ

60mΩ

Self-Discharge

≦3.5%

Cycle Life

6000 Cycles

Operation Conditions

Charging Operating Temperature

0℃~45℃

Discharging Operating Temperature

-10℃~45℃

Storage Temperature

-20℃~45℃

Storage Duration

12 Months 20℃~25℃

Water Dust Resistance

IP30

Parallel Function

Maximum support 16 units in parallel

Application

Telecommunication Base Station

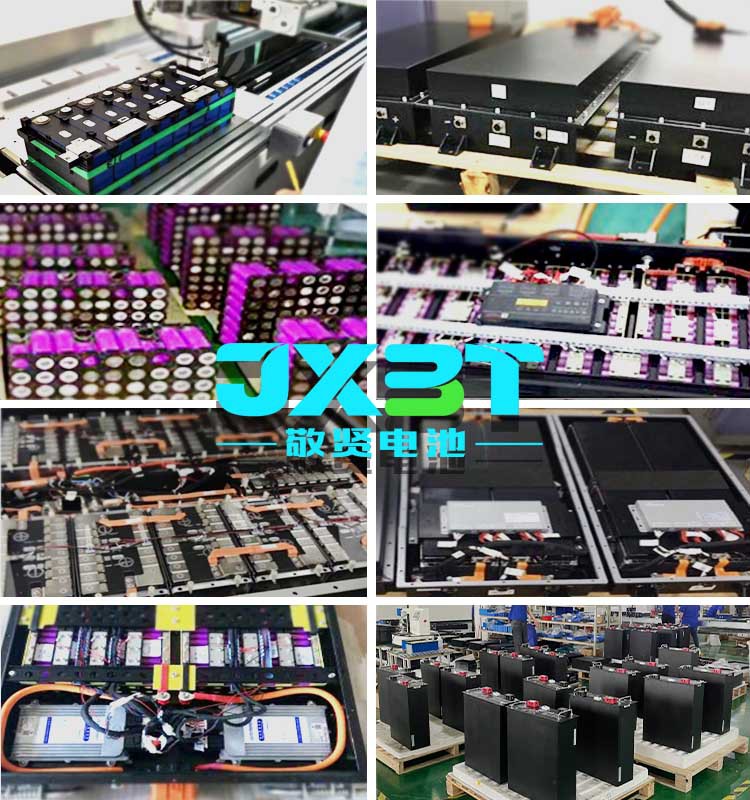

Production

lifepo4 48v 200ah

Our Project

10kwh lifepo4 battery

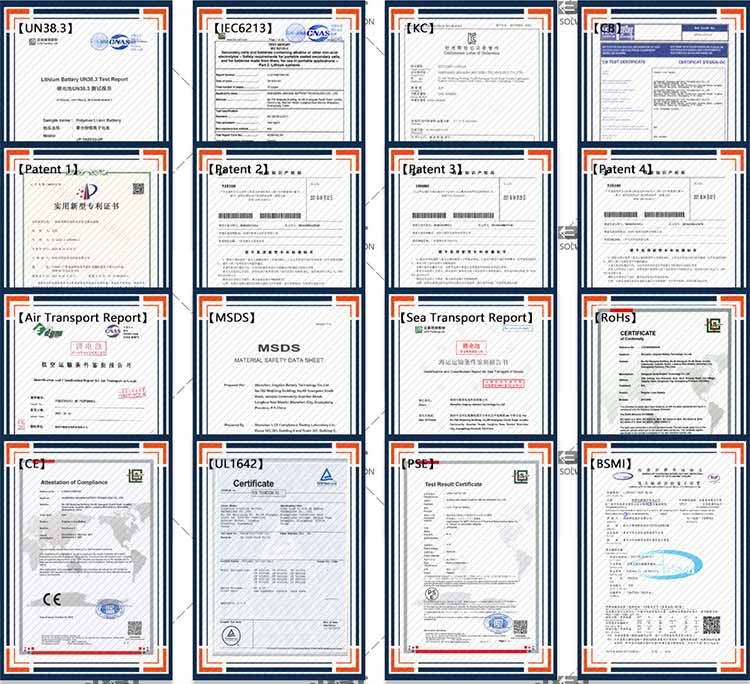

Certification

lithium battery 48v 200ah

To make sure customers could use our battery smoothly and to expand the overseas market, we pay high attention to product innovation and product certification, now we have got the certifications like UN38.3, IEC62133, KC, CB, Air transport report, MSDS, Sea transport report, RoHS, CE, UL1642, PSE BSMI, etc.

Features and Selling Points
Battery Storage for Solar and Wind has numerous features that make it an attractive investment. These include its durability, reliability, stability, long lifetime, low maintenance, and cost-effectiveness. The storage unit is designed to work flawlessly for many years, providing seamless backup energy solutions, and an extremely rare risk of overcharging or leakage. One of the main selling points is its ability to reduce carbon footprint effectively.

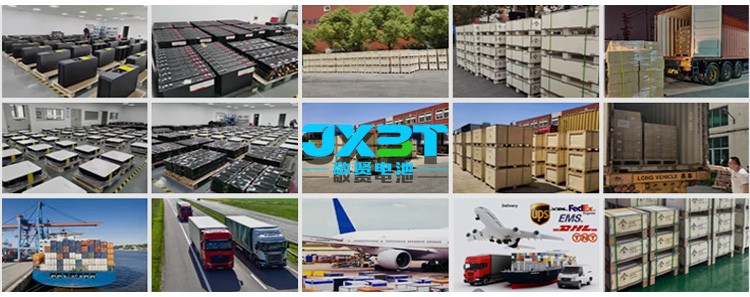

Package

battery storage for solar and wind

Payment & Delivery

Payment Terms

T/T

EXW

30% deposit, 70% balance before shipment

FOB

CFR

CIF

Paypal

Amount lower than USD3000

West Union

Amount lower than USD5000

L/C

The amount above USD50,000 by L/C at sight

Delivery Time

By express

FedEx

7-10 working days in normal

UPS

DHL

By air

15-20 working days in normal

By sea

35-45 calendar days in normal

Certification and Support
The Battery Storage for Solar and Wind has various safety and quality certifications, ensuring that it complies with all safety and industry standards. It is backed by a comprehensive warranty and insurance policy. Our support team of engineers is available around the clock, and adequately trained to offer assistance whenever needed.

Logistics and Transport
We place a high value on fast and reliable delivery, and our logistics team ensures that all orders are processed promptly and with the utmost care. We work with dependable transportation partners to offer efficient delivery services worldwide.



Why choose us?

  • We offer customized Base Station Battery Module solutions that meet our customer's unique requirements.
  • Our company abides by the rules of ethics, the code of business conduct and the standard of business ethics.
  • Our commitment to eco-friendly manufacturing translates into environmentally safe Base Station Battery Modules.
  • We provide high-quality products to our customers with high-quality talents, strong financial strength, excellent Battery Storage for Solar and Wind and perfect after-sales service system.
  • We specialize in manufacturing and supplying high-performance Base Station Battery Modules for various applications.
  • We build a loyal and honest, hard-working and skillful staff team.
  • We are a Chinese factory, specializing in high-quality Base Station Battery Modules and professional services.
  • We take the rule of law thinking as the guide to enhance the ability of enterprise management according to law.
  • Our competitive pricing strategy ensures that our Base Station Battery Module products remain within your budget.
  • It is part of our team spirit to offer advice and suggestions for Battery Storage for Solar and Wind innovation and continuous improvement of product quality and delivery efficiency.



Hot Tags: battery storage for solar and wind, China battery storage for solar and wind suppliers, lifepo4 48v 200ah, Data Center Battery, Telecommunication Base Station, 48 volt lithium battery pack, 48v lithium ion battery pack, 48v rack mount battery
